SKU:4087-100151
WATERAX
STRIKER-4™ High-Pressure 4-Stage Fire Pump Diesel
STRIKER-4™ High-Pressure 4-Stage Fire Pump Diesel
Regular price
$11,995.00 USD
Regular price
Sale price
$11,995.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

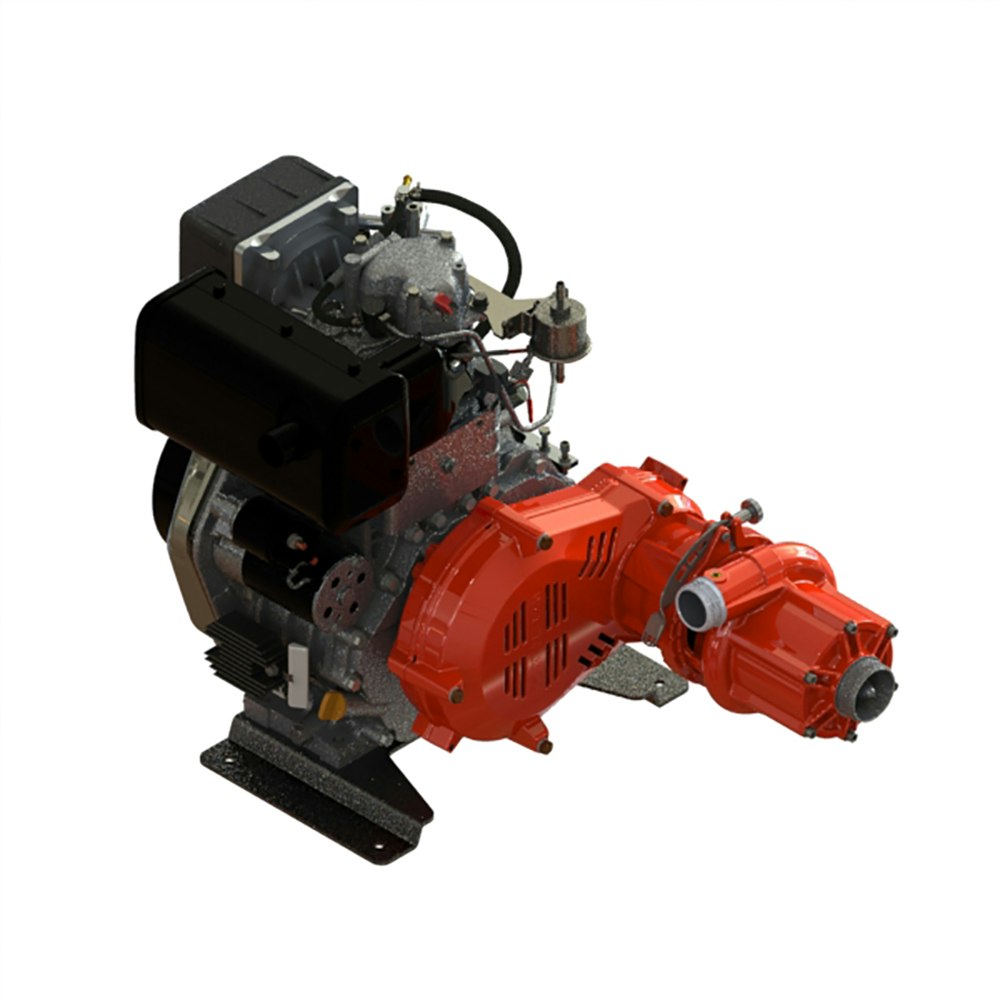

The STR4-DY10H combines a reliable YANMAR L100 diesel engine, producing 9.3 HP, and couples the innovative, lightweight, corrosion-resistant 4-stage pump end from the MARK-3® Watson Edition to deliver exceptional durability and operating-range performance in demanding environments.
The pump is fully compatible with the DCP, supporting both single and dual control panel configurations.
The engine speed can be controlled via the DCP through the use of a linear throttle actuator.
Maximum pressure
310 PSI (21,4 bar)
Maximum flow
112 US gals/min (424 L/min)
Maximum head
716’ (218 m)
Performance:
85 GPM (322 lpm) @ 100 PSI (6.9 bar)
65 GPM (246 lpm) @ 150 PSI (10.3 bar)
28 GPM (106 lpm) @ 250 PSI (17.2 bar)
Engine:
Model and type - DIESEL YANMAR L100
Maximum Power - 9.3 hp (6.8 kW) @ 3,600 rpm
Maximum Torque - 18.3 lb-ft (24.8 Nm) @ 2,000 rpm
Starting System - Recoil starter and electric start
Pump End:
Type - 4-stage, centrifugal pump
Intake - 2” (51 mm) NPSH / Victaulic
Discharge - 1-1/2” (38 mm) NPSH / Victaulic
Weight:
160 lbs (72.6 kg)
