SKU:4087-100161
WATERAX

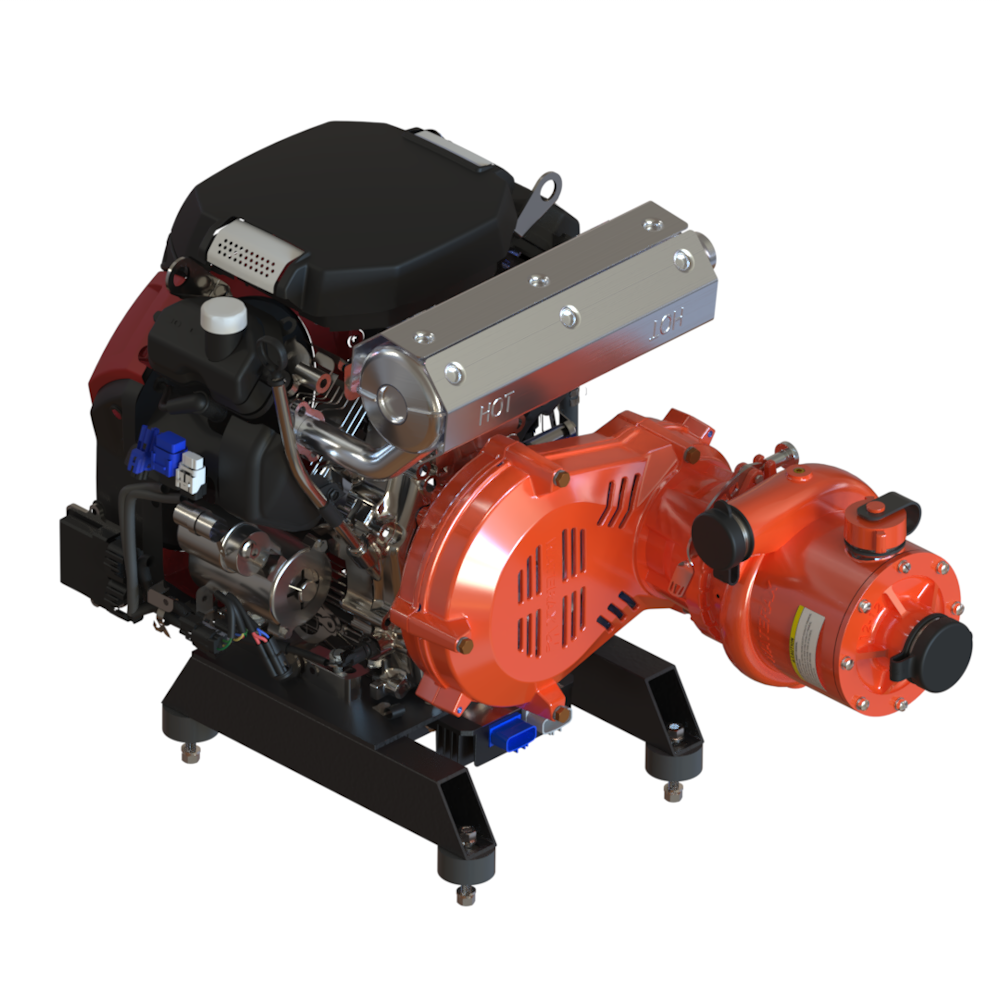

BB-4® High-Pressure Fire Pump IGX800 EF
BB-4® High-Pressure Fire Pump IGX800 EF
Regular price
$7,865.00 USD
Regular price
Sale price
$7,865.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The new BB-4-25H vehicle-mounted pump features the 24.8 HP HONDA IGX800 EFI engine, delivering best-in-class performance and full DCP compatibility in both single and dual control panel configurations. The engine speed can be controlled via the DCP directly through the engine ECU, without the need for an additional throttle actuator.
Maximum pressure
470 PSI (32.4 Bar)
Maximum flow
109 US gals/min (413 L/min)
Maximum head
1084.4' (330.5 m)
Performance:
105 US GPM (397 L/min) @ 150 PSI (10.3 Bar)
96 US GPM (363 L/min) @ 250 PSI (17.2 Bar)
74.2 US GPM (280.5 L/min) @ 350 PSI (24.1 Bar)
Engine:
Model and type - Honda IGX800 4-stroke, overhead valve, 2 cylinders (90° V-twin)
Maximum Power - 24.8 hp (18.5 kW) @ 3600 RPM
Maximum Torque - 40.2 lbf-ft (54.5 N-m) @ 2500 RPM
Starting System - Electronic Fuel Injection (EFI)
Pump End:
Type - Detachable, 4-stage, centrifugal pump
Intake - 2" Male NPSH Thread
Discharge - Check Valve: 1-1/2” male NPSH thread (meets US Forest Service Specification 5100-382)
Weight:
178.5 lb (81.2 kg)
